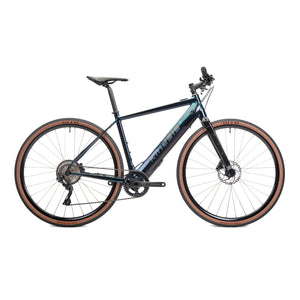

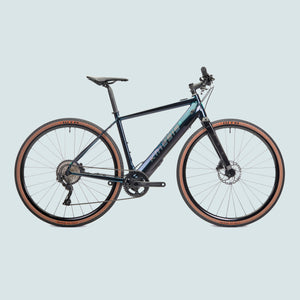

ENJOY EVERY MOMENT ON TWO WHEELS.
RANGE Flat Bar e-bike is an elegant electric fitness bike that makes lightwork of hills and allows you to travel faster, further and more frequently than ever before. It features a lightweight Aluminium frame paired with the excellent Fazua Evation motor system, for a carefree and enjoyable experience on every journey.

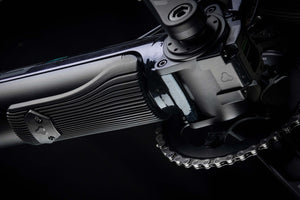

FAZUA MOTOR: THERE WHEN YOU NEED IT
The Fazua system kicks in below 15.5mph, providing you with up to 250 Watts of assistance, offering you a welcome helping hand when moving off from a standstill, or taking on hills. Above 15.5mph, the Fazua motor seamlessly decouples from the drivetrain, so you can push on without any extra resistance. With three customisable levels of assistance and an integrated top tube remote, you remain in complete control of the level of power that you need. Need to go further? Spare batteries are available and easy to change, so you can carry as much battery as you need.
TAKE IT ALL ON…
RANGE is equipped with MicroSHIFT XLE gears and Tektro hydraulic brakes, for smooth faultless shifting and powerful controlled braking. The inclusion of high volume all-terrain tyres means that RANGE is perfectly equipped for journeys off road, whether it’s a canal path, or a trip into the woods.
Regardless of whether you ride for fun, fitness or exploration, RANGE is a rewarding ride that is the perfect complement to a modern lifestyle. Empower you riding and reach further with the RANGE fitness E-bike.
KEY FEATURES:

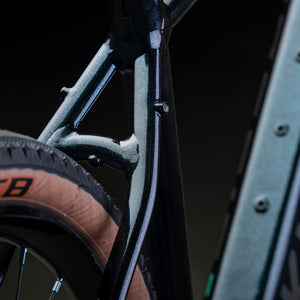

• Aluminium Frame with 50C Tyre Clearance
• Galactic Iridescent Paint Job
• Full Carbon RANGE Fork with Luggage Mounting Points

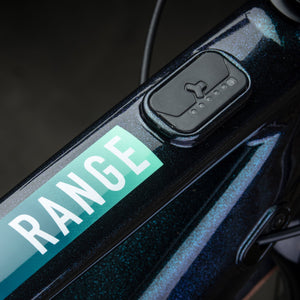

• Fazua Evation Drive System with Top Tube Remote
• Removable 252Wh Battery
• Rack and Mudguard Compatible
• MicroSHIFT XLE 1x10 Drivetrain
• Tektro hydraulic brakes
• Weight: 14.9kg (size medium)
WARNING: The maximum total weight allowed (rider, clothing, protective gear, backpack, luggage etc.) is 120kg.
POWERED BY FAZUA
• UPTO 250W ASSISTANCE
• LOW DRAG DRIVE UNIT
• 55Nm TORQUE
• 250Wh REMOVABLE & REPLACEABLE BATTERY - ONLY 1.38kg
• RANGE: 1000m ELEVATION (UP TO 55km USING MIXED MODES)
Choose from three levels of assistance or pedal without any help, just as you would on a non-motorized bike.
BREEZE MODE
Gentle and constant tailwind even with low pedalling power and cadence.
100W of power
RIVER MODE
Progressive and very athletic mode. The strength of the support precisely follows your own power input. The stronger you pedal, the bigger the support.
210W of power
ROCKET MODE
Powerful assistance that helps you to tackle the steepest and most difficult sections.
250W of power
Colour Option: Galactic

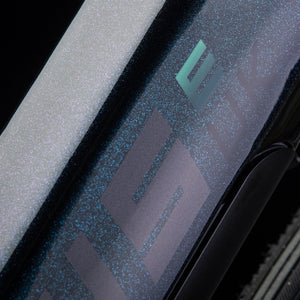

Down Tube Decal: The colour will reflect rainbow gloss when viewed from different angles.
Comes equipped with the new Fazua 250 X Battery, allowing remote power on/power off functionality without removing the battery.
| COLOUR |
Galactic |
| WEIGHT |
14.9kg (size medium) |
| FRAME |
Kinesis RANGE lightweight 6061 Hydroformed Aluminium Frame |
| FORK |
Kinesis RANGE Carbon Fork |
| SHIFT LEVERS |
MicroSHIFT XLE 1x10spd |
| REAR MECH |
MicroSHIFT XLE |

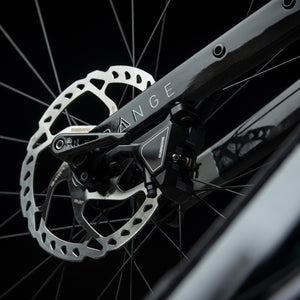

| BRAKES |
Tektro R280 - 160mm Front and Rear |
| CASSETTE |
MicroSHIFT 11-40 |
| CRANK SET |
Praxis Alloy E-Crank 42t - S-M 165mm, L-XL 170mm |
| RIMS |
Sector GCe E-Specific Tubeless Ready Aluminium Rim. Eyeletted and Pinned |
| HUBS |
Sector E-Specific Hubs w/ Steel Rear Axle, 5 Bearings and 4 pawl Freehub |
| SPOKES |
14g Black |
| TYRES |
Panaracer Gravel SS Tubeless Ready |
| SEAT POST |
Ritchey 2-Bolt - 350mm x 31.6 diameter / 25mm offset |
| SADDLE |
Selle Italia X3 |

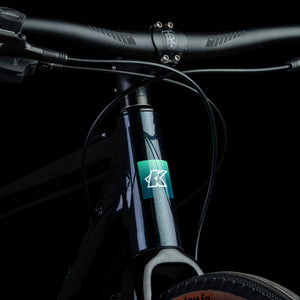

| HANDLEBAR |
Ritchey MTN Rizer Trail 720mm |
| STEM |
Kinesis Alloy S-M 80mm, L-XL 90mm |
| HEADSET |
FSA no.42 Cartridge Bearing |

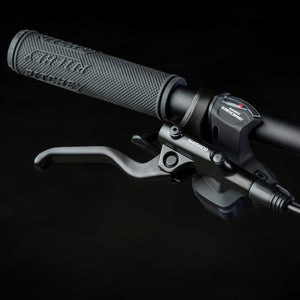

| GRIPS |
Ritchey MTN Comp |
The Range Fitness bike will be delivered 95% built.
• The front wheel needs fitting (rotor attached).
• You’ll need to align the front brake caliper.
• The handlebars need fitting to the stem (the stem comes fitted with a negative rise, and 2x10mm spacers under and 1x10mm spacer above the stem).
• The seatpost needs fitting (saddle attached to post).
• The Fazua battery is located in the separate box.

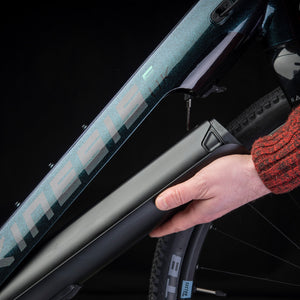

• Remove the Drivepack from the bike, and remove the top cover from the Drivepack. Slide the battery in the Drivepack, and refit to the bike.
• Fit the Drivepack port cover.
• Remove the locker shim (taped to the top tube). This should not be required, but please refer to the Fazua website for its usage.
Also, the Range Fitness bike comes with some spare and manuals in the separate box, in the bike box:
• Drivepack port cover and 2x torx bolts.
• Cassette spoke cover.
• Wheel and spoke reflectors.
• Bell.
• Bar tape finishing strips.
• Fazua manual.
• Range user manual.
• Range quick start guide.
• Fazua Evation charger and UK plug.
Important Notes

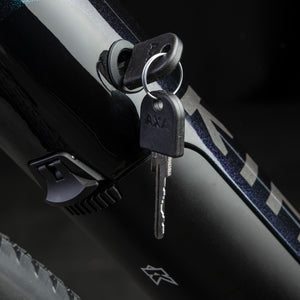

• Two keys are attached via a cable tie to the gear cable, keep a note of the number on the key (this will be needed by AXA when requesting a new key).
• Please fully charge the battery before first use.
• Please check for updates to the Fazua Evation software, by going to Fazua.com and downloading the toolbox software.
• Please fully read the manuals before enjoying your Fazua Evation equipped Kinesis, to understand the modes, displays, and the technologies which you will be using.
Choosing the correct bike size for you depends on the type of bike your after, your height, your riding style, and your preference of fit.
A correct fitting bike will provide a more comfortable, more efficient and more fun ride.
Kinesis’s bike size guide gives you some general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts from our contact us page.
To get started, think about your style of riding, measure your height and see the sizing guide below.
However there is no substitute for good old fashioned advice from your local bike shop, we have a list of dealers
