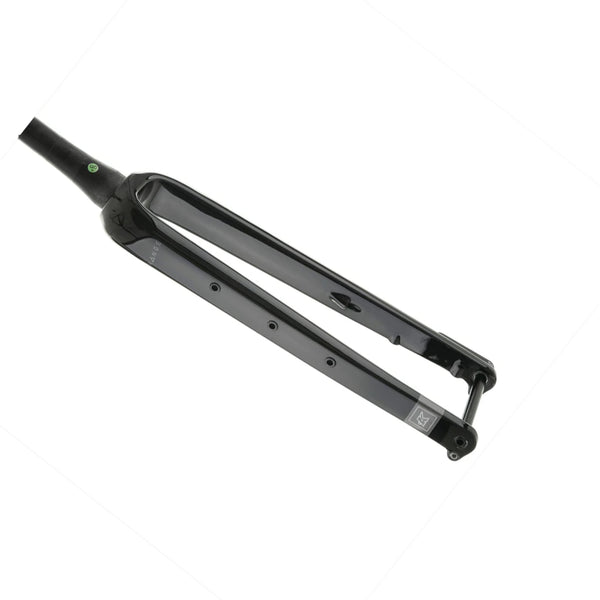

Kinesis Range Disc Thru Axle Fork


The all-new Kinesis Range Disc Thru Axle Carbon Fork, absorbing all vibrations, resulting in a smooth and comfortable ride.

£400.00


UPGRADE YOUR ADVENTURE.


For 2020 we have a new Kinesis Ebike category and the RANGE fork has been paired to compliment our Ebikes RANGE (Adventure) and RANGE Flat Bar (Fitness).

Originally the RANGE fork was designed to be used with the new and improved Kinesis Tripster ATR. However, it is now available to purchase separately to upgrade your current bike, ready for the next adventure.

The RANGE Fork has 3 cargo mounts on the left and right legs (6 in total), the Range fork is extremely customizable and can easily accommodate bottle cages as well as luggage racks, perfect for all adventures. The Range fork also provides internal routing for the front brake, creating a much tidier front end and reducing the risk of cable snag.

With full UD Carbon Fibre construction, the Range carbon fork absorbs all vibrations, resulting in a smooth and comfortable ride whilst also being incredibly light at only 500g (without axle).

• Full UD Carbon Construction.



• 12mm GW Switch Lever Axle.

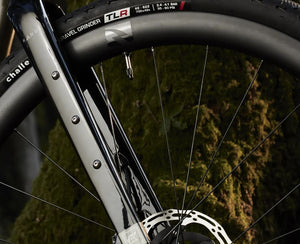

• Three mounting holes on each fork leg.

• Internal brake hose routing.

• Mudguard Eyelets.

• 300mm Steerer.

• Discreet Shimano Flat Mount.

Material: UD Carbon Fibre.



Steerer Size: 1.1/8" - 1.5" Tapered.
Wheel Size: 700c.

Rake: 50mm.

Weight: 500g (without axle).

Crown Height: 400mm.

Max Tyre Width: 700c x 45mm or 650b x 50mm.

The luggage carrying weight capacity of the Range fork is 3kg per side. We recommend distributing weight evenly between the two sides so as not to affect handling.

The minimum bolt insertion depth must be 10mm. The maximum bolt insertion depth is 16mm on the topmost and middle mounting hole, and 12mm on the lowest hole. The range fork is not supplied with cargo mount bolts as the length of bolt required for your rack or mount can vary greatly depending on the thickness of the material used in the construction of your rack or mount. If bolts of too short a length are fitted it may cause the threads to strip and the rack or mount to fail. If bolts of too long a length are fitted, you will damage the carbon inside the fork.
