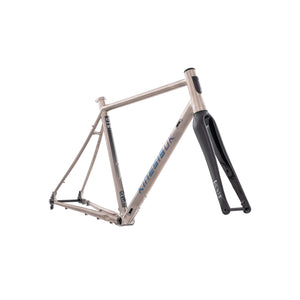

GTD v2 Titanium Road Frameset


Go The Distance With Our All New GTD Titanium Road Bike Frameset.

All year titanium mile eater.

£2,200.00

Our flagship titanium road frameset is back, with a host of refinements for an even more unforgettable ride. No matter whether you are doing endurance races, century rides, or commuting in style, the GTD delivers pure riding joy on every single ride.

The GTD comes equipped for all conditions riding, because we believe the sublime ride of titanium shouldn’t be reserved for summer Sundays.

NEW Rider Fit Geometry

Redistributed sizing based around Stack and Reach measurements, with semi sloping frame on the smallest frames. This not only reduces the stand over height but also brings comfort in line with our larger models.



NEW Carbon Fork

Increased tyre, mudguard clearance and mounting point for a dynamo lamp.



NEW Revised BB Shell

Increased internal space to allow the use of 30mm axle cranks with Di2 internal routing.



NEW Improved Cable Routing

Provisions for full gear outer cable from the shifter to the rear derailleur. This protects against water and dirt ingress, preserving shifting performance for longer.



Curved seat stays
Maximises rear end compliance for vibration damping, whilst the straight chain stays stiffen the frame laterally for maximum power transfer.

12mm Thru Axle Front and Rear
Industry standard for maximum wheel security and bike stiffness. With a removable GW Switch Lever, giving a clean, elegant look.

Adaptable Cable Ports
Versatility with set up choice for any major groupset.

Abundance of mounts
Bottle mounts, rack mounts, mudguard mounts, for versatile all seasons riding.

Thru Axle Located Derailleur Hanger
Thru Axle locates through the hanger for maximum hanger rigidity, with no negative effect on deformation during impact.

Custom CNC dropouts
With discreet Di2 routing.

• Custom drawn 3Al 2.5v titanium tubing.
• Kinesis carbon monocoque disc tapered fork.
• Flat mount specific calliper mounts.
• GW Tapered headset with ACB Bearings.
• 142x12mm Thru Axle rear spacing.
• 100x12mm Thru Axle front fork.
• GW ‘Switch Lever’ axles front and rear.
• Clearance for up to 34mm tyres.
• Clearance for up to 30mm tyres with guards.
• Compatible with Mechanical and Di2 systems (1x and 2x).
• Three bottle cage mounts.
• Mudguard and rack mounts.
• 34.9mm Front Mech clamp size.
• 68mm threaded Bottom Bracket.
• 31.6mm Seatpost required.
• Brushed natural Titanium with laser etched Downtube.
• 32mm long flat mount disc brake bolts required for the frame.
• Available in 48cm, 50cm, 52cm, 54cm, 56cm, 58cm and 60cm sizes.
• Frame supplied with fork, headset, titanium seat clamp, front & rear Thru Axle, frame ports and cable guides.
• 5 years warranty (original owner, see warranty information).



Frame Weight:
XXS (48cm) - 1.63kg.
XS (50cm) - 1.66kg.
SM (52cm) - 1.70kg.
MD (54cm) - 1.74kg.
LG (56cm) - 1.79kg.
XL (58cm )- 1.84kg.
XXL (60cm) - 1.89kg.


Frame Size XXS (48cm) XS (50sm) SM (52cm) MD (54cm) LG (56cm) XL (58cm) XXL (60cm)

Seat Tube Length C-T 440 470 495 540 560 580 600
Top Tube Length Effective 520 530 544 558 569 581 600
Head Tube Length 123 136 149 166 180 196 215
Head Tube Angle 70.5 70.5 71 71 71.5 71.5 72
Seat Tube Angle 74 74 73.75 73.5 73.5 73.5 73
Bottom Bracket Drop 72 72 72 70 70 69 69
Chain Stay Length 420 420 420 420 420 420 420
Front Centre 584 596 603 615 622 634 642
Wheelbase 994 1005 1012 1025 1032 1044 1053
Stack 530 542 556 570 585 600 620
Reach 368 375 382 389 396 403 410
Fork Axle to Crown 382 382 382 382 382 382 382
Fork Rake 47 47 47 47 47 47 47

Choosing the correct bike size for you depends on the type of bike your after, your height, your riding style, and your preference of fit.

A correct fitting bike will provide a more comfortable, more efficient and more fun ride.

Kinesis’s bike size guide gives you some general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts from our contact us page.

To get started, think about your style of riding, measure your height and see the sizing guide below.

However there is no substitute for good old fashioned advice from your local bike shop, we have a list of dealers here and they will be able to help you with your sizing and bike setup prior to building it.


GTD v2 Size Guide
